Stock Road / Gravel Framesets

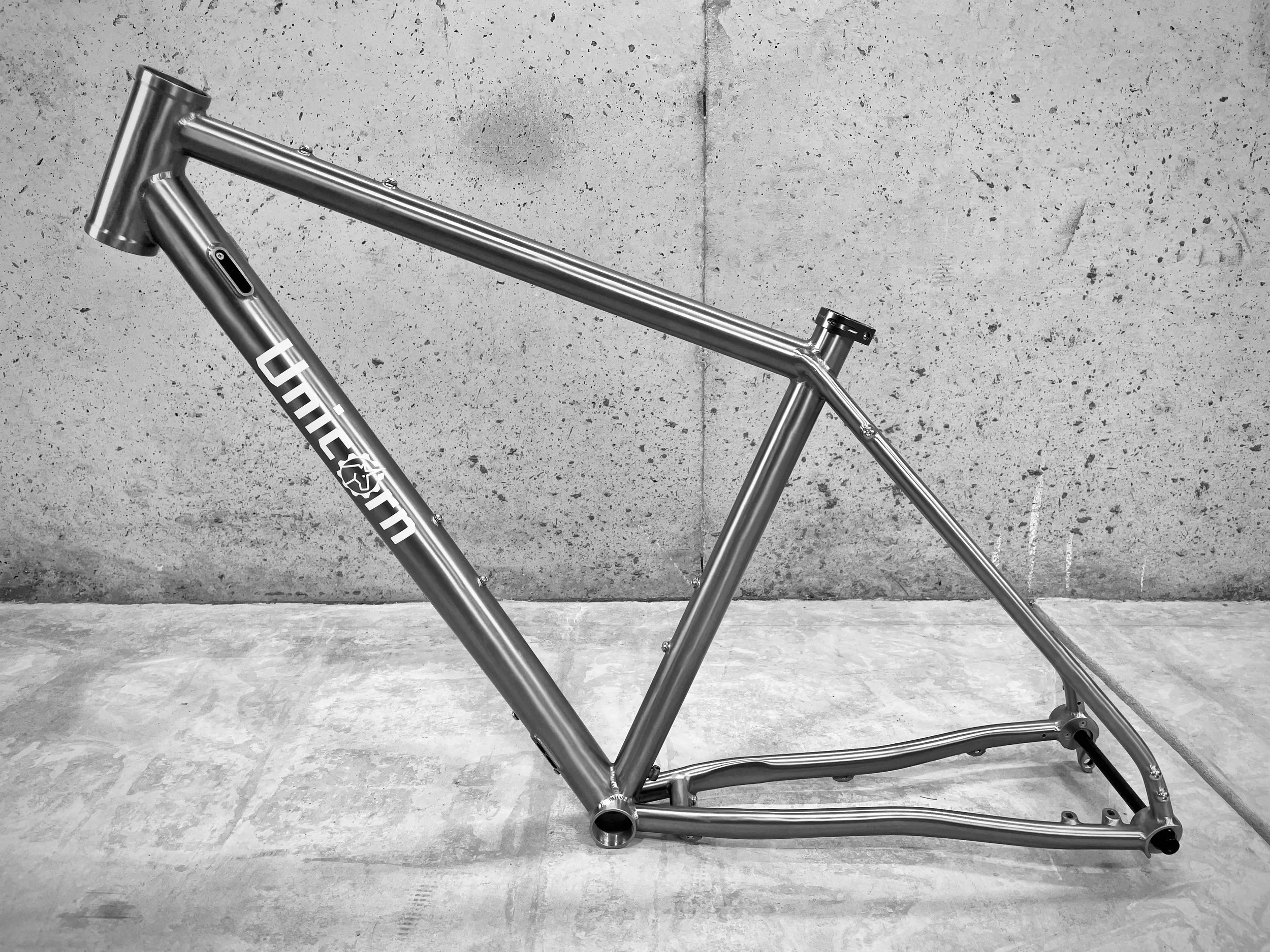

Unicorn Cycles specializes in custom frames. However, we also offer stock road/gravel frames. The frame below is ideally suited as an all-road bike, with a focus on versatility, and stability. The geometry you could say is more endurance-focused with a bit more upright riding position, a longer wheelbase, and a slack head tube angle.

Frame Specifications
  • Seamless, brushed titanium 3Al/2.5V (grade 9)
  • 1x max chainring 46t
  • 2x setup max chainring size 50/34t
  • Mounts; rack, fender, top tube bag, under the downtube
  • Seatpost 27.2mm size, seatpost clamp included
  • Rear hub spacing 12x142mm, thru-axle included
  • Replaceable derailleur hanger
  • Max tire size, 700c x 50mm or 650b x 50mm
  • Bottom bracket BSA 68mm English threaded
  • Headtube able to accommodate a straight or tapered fork
  • Flat mount disc brakes
  • Internal cable routing through the downtube
  • Unicorn logo engraved on the headtube
  • Unicorn name on downtube in white

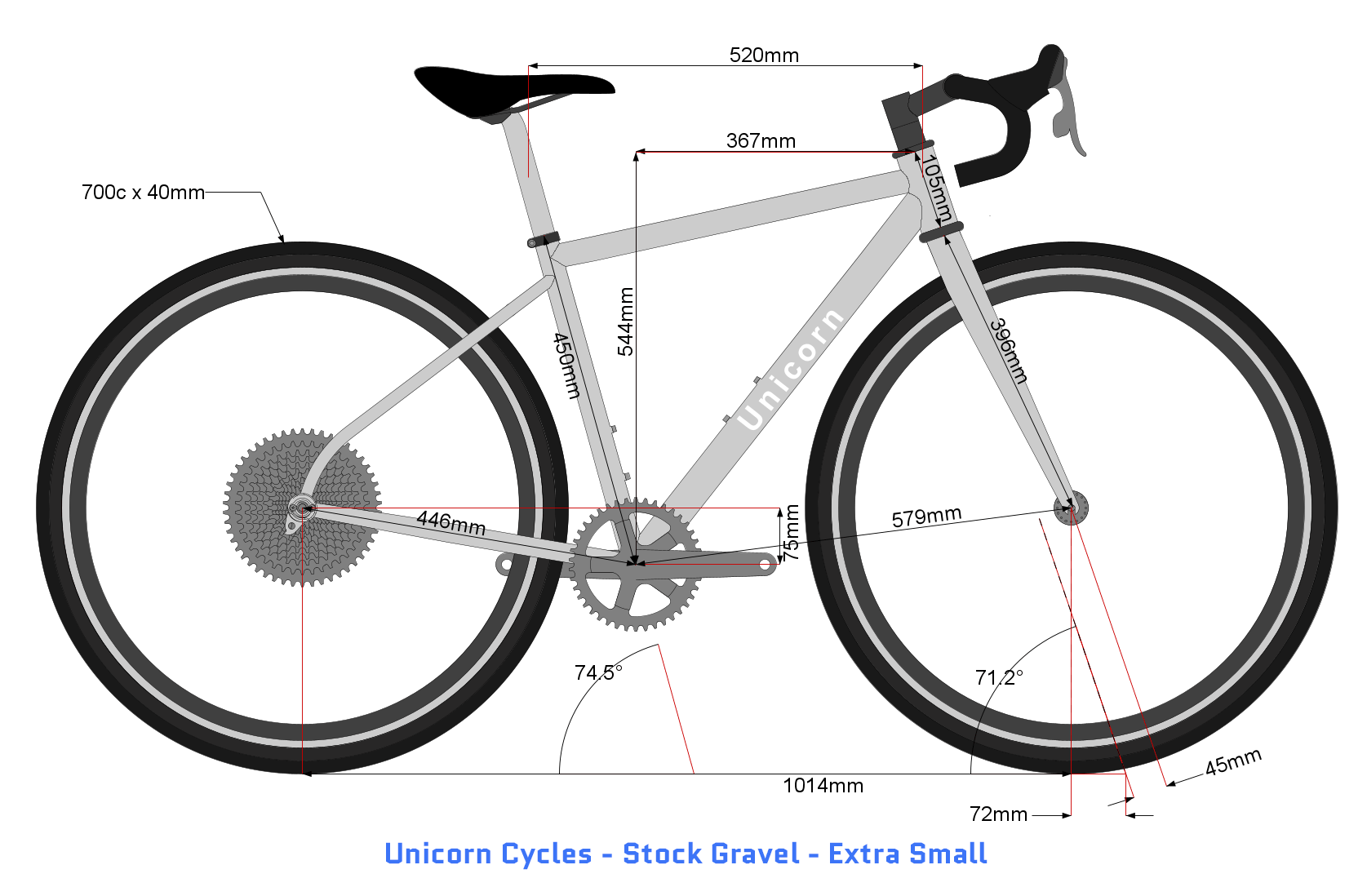

XS S M M/L L XL
Recommended Rider Height 5'0" - 5'3" 5'2" - 5'6" 5'5" - 5'9" 5'8" - 6'0" 5'11" - 6'3" 6'2" + 6'6"
Stack 544 563 580 600 617 636
Reach 367 377 382 391 396 410
Standover Height 727 746 771 793 817 835
Top Tube 520 540 555 570 585 611
Seat Tube 450 470 495 520 545 565
Head Tube 105 125 145 165 185 205
BB Drop 75 75 72 72 70 70
Chainstay 446 446 446 446 448 450
Fork Axle To Crown 396 396 396 396 396 396
Fork Rake 45 45 45 45 45 45
Head Tube Angle 71.2° 71.2° 71.5° 71.5° 71.8° 71.8°
Seat Tube Angle 74.5° 74.0° 73.5° 73.5° 73.0° 72.5°
Wheelbase 1014 1030 1040 1055 1065 1088
Weight 3.98 lbs 4.23 lbs 4.36 lbs

Note: Lengths listed in millimeters, angles listed in degrees. The standover height measured 50mm forward of BB center with 700c x 40mm tires. X/L size frames are available by request only.

Prices

Shipping within the continental US is $80. Shipping outside the continental US is available, contact us for an estimate. Colorado residents add sales tax. Other forks and headsets are available upon request
